TITANIUM





BMJ

Our latest creation, the BMJ, is a 3Al-2.5V Disc brake road bike, but also much, much more. Change the tyres and gearing and you have a cyclo-cross race bike that any pro would be happy to ride. Add carriers with our hidden mounts to transform into a gravel touring machine. From the first push on the pedals, you’ll experience a new kind of freedom.

This bike is best suited to going long…you’ll find the stiffness necessary for an hour of CX racing, but the BMJ really shines on those all day rides with the compliance that only 3Al-2.5V Titanium gives.



↑↓  Internal hose and cable routing keeps it all clean and out of sight.

Hidden rear carrier mounts.

Integrated replaceable thru-axle rear dropout and hidden carrier mount.

Flat mount brake and carrier mount on the fork.

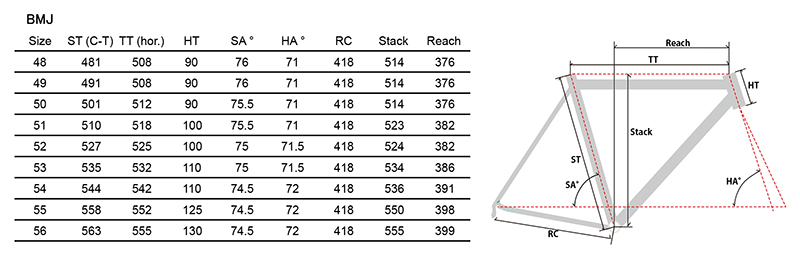

BMJ Spec

Frame: Heat treated, Butted 3Al-2.5V Titanium, T47 BB(68mm), Flat Mount, 12x142mm thru-axle, replaceable derailleur hanger

Fork: 3Al-2.5V Titanium, 1⅛” – 1¼” tapered, Flat Mount, 12x100mm thru-axle

Seatpost: 27.2mm

Seatpost Clamp: 31.8mm (option)

Front Derailleur band : 31.8mm

Finish: Hairline

Weight: Frame 1.5kg (size 55), Fork 0.6kg



Frameset (Frame, Fork)

¥408,000 + tax (built to order, delivery approx. 5 months)

____________________________________________________________________________________________________

MTi64_front+mate

MTi64

The MTi64 brings out the full potential of titanium. Utilising aerospace grade 6Al-4V butted titanium tubing, stiffness and responsiveness are the main characteristics of this bike. Modern metal frames are often paired with a carbon fork, but we have chosen a 3Al-2.5V titanium fork for its compliance to perfectly complement the stiffness of the frame. The race-bred stiffness of the frame combined with the road-hugging feel of the fork may be best compared to a formula one race machine. Adding impeccable style to performance,  this is the bike for the racer who wants it all.

 MTi64-front

The MTi64 uses a tapered head tube for increased stiffness and responsiveness out of the saddle, and to ensure you always keep the line you want.

2017mti64_bb

The butted 6Al-4V tubing provides the stiffness to transfer all your power to the road. We’ve chosen an English threaded BB for versatility and reliability, and compatibility with electronic  shifting systems provides options and peace of mind for life-long enjoyment.

MTi64_back

The MTi64 can also be built as a thru-axle flat mount disc brake version, for a thoroughly modern race machine.

MTi64 Spec

Frame: Heat treated, Butted 6Al-4V Titanium, English BB, Rim Brake, 130mm QR, replaceable derailleur hanger

Fork: 3Al-2.5V Titanium, 1⅛” – 1¼” tapered, 100mm QR

Seatpost: 31.6mm

Seatpost Clamp: 34.9mm (option)

Front Derailleur band : 34.9mm

Finish: Hairline

Weight: Frame 1.3kg (size 52), Fork 0.6kg



Frameset (Frame, Fork)

¥528,000 + tax (built to order, delivery approx. 5 months)



MTi64d Spec

Frame: Heat treated, Butted 6Al-4V Titanium, T47 BB(68mm), Flat Mount, 12x142mm thru-axle, replaceable derailleur hanger

Fork: 3Al-2.5V Titanium, 1⅛” – 1¼” tapered, Flat Mount, 12x100mm thru-axle

Seatpost: 31.6mm

Seatpost Clamp: 34.9mm ((option)

Front Derailleur band : 34.9mm

Finish: Hairline

Weight: Frame 1.3kg (size 52), Fork 0.6kg

Frameset (Frame, Fork)

¥543,000 + tax (built to order, delivery approx. 5 months)

MTi64_geo



____________________________________________________________________________________________________







MTi325

THE standard for Titanium bikes. Built from 3Al-2.5V butted titanium tubing and paired with a fork to match, this bike gives a silky smooth ride without feeling soft and flexy.

You have the choice of a whole range of options. Rim or disc brakes, internal or external cabling, hairline finish or polished. Extra bottle cage mounts? Rack and fender mounts? No problem – make it YOUR bike.





MTi325 Spec

Frame: Heat treated, Butted 3Al-2.5V Titanium, English BB, Rim Brake, 130mm QR, replaceable derailleur hanger

Fork: 3Al-2.5V Titanium, 1⅛” – 1¼” tapered, 100mm QR

Seatpost: 31.6mm

Seatpost Clamp: 34.9mm (option)

Front Derailleur band : 34.9mm

Finish: Hairline

Weight: Frame 1.47kg (size 52), Fork 0.65kg



Frameset (Frame, Fork)

¥448,000 + tax (built to order, delivery approx. 5 months)



MTi325d Spec

Frame: Heat treated, Butted 3Al-2.5V Titanium, T47 BB(68mm), Flat Mount, 12x142mm thru-axle, replaceable derailleur hanger

Fork: 3Al-2.5V Titanium, 1⅛” – 1¼” tapered, Flat Mount, 12x100mm thru-axle

Seatpost: 31.6mm

Seatpost Clamp: 34.9mm (option)

Front Derailleur band : 34.9mm

Finish: Hairline

Weight: Frame 1.47kg (size 52), Fork 0.65kg



Frameset (Frame, Fork)

¥470,000 + tax (built to order, delivery approx. 5 months)



Options

Mirror polish ¥40,000 + tax

Brake/ Shifter / EPS or Di2 internal routing: ¥10,000 + tax

(Internal routing requires T47 BB68mm), included in option price)

Bottle cage mounts under downtube: ¥4,000 + tax

Carrier Mounts (Front/Rear): ¥4,000 + tax



MTi64_geo—————————————————————————————————————–
